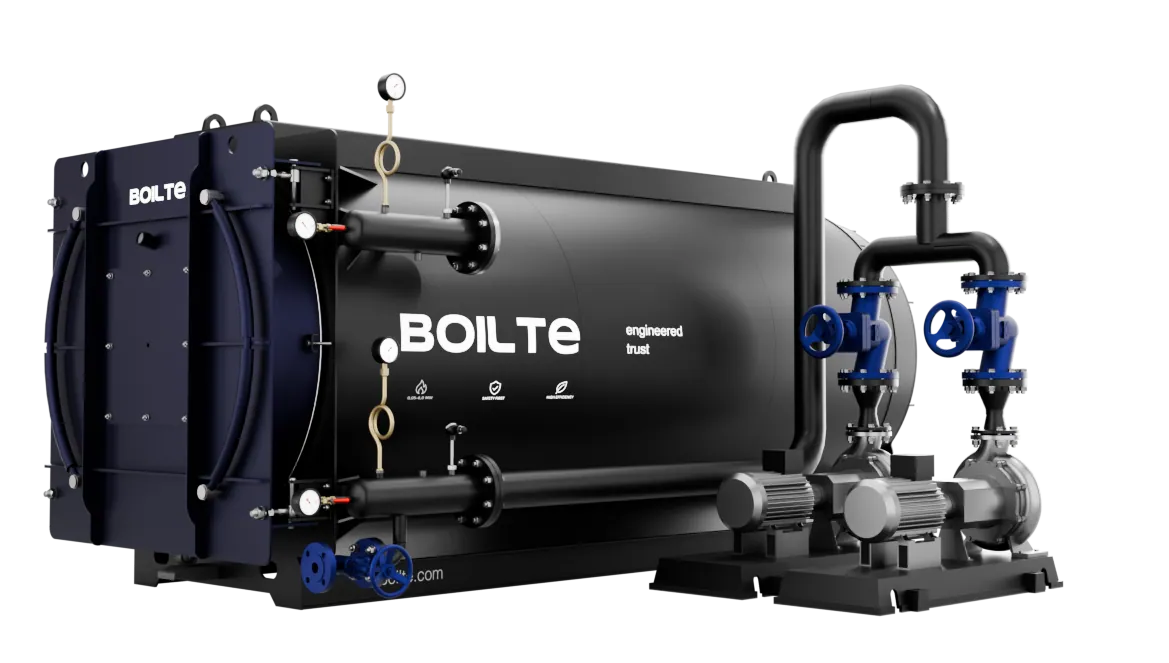

MAGMAIndustrial three-pass boiler on thermal oil Boilte Magma
Industrial three-pass boiler on thermal oil Boilte Magma
Boilte Magma is an industrial three-pass boiler on thermal oil, designed to overcome the temperature barrier of water vapor. Magma heats liquid organic heat carrier up to 300°C at a working pressure in the system not exceeding 10 bar, which is significantly safer and more economical than high-pressure steam systems (where at 300°C a pressure above 86 bar would be required).
From every side
Press and hold, then drag sideways to rotate. On a phone, swipe across the image.
Why choose MAGMA
300°C at a pressure of <10 bar
Safer and more economical than steam systems (where at 300°C more than 86 bar is required).
Three-pass coaxial burner
Double coil – maximum heat extraction, reduction of NOx emissions by 25–30%.
Lifetime warranty
On the coil heat exchanger. No time limit.
Protection of thermal oil
Flow rate control, emergency cooling, hydrodynamic modeling.
Forced circulation with CRP
Optimal flow rate, elimination of local overheating and coking.
Savings of up to 25% compared to steam
No losses on blowdown and latent heat of vaporization.
Construction
and materials
Three-pass coaxial burner with double coil:
- ›Forced circulation – powerful pumps with frequency converters maintain optimal oil flow rate through the coil, eliminating local overheating and thermal cracking of the heat carrier
- ›Sealed circuit – a completely closed system with an expansion tank filled with inert gas (nitrogen) eliminates contact of the oil with oxygen and its oxidation
- ›Protection of thermal oil – precise flow rate control using sensors and adjustable pumps prevents stagnation and overheating. Multi-point temperature measurement at the inlet, outlet, and critical points of the coil in real-time transmits data to the controller. Emergency cooling circuits automatically activate backup cooling to dissipate residual heat and prevent oil coking in case of power failure or pump shutdown
- ›Hydrodynamic modeling of each circuit guarantees the absence of stagnant zones – the main cause of oil degradation.
Service & warranty
The Magma boilers come with a lifetime manufacturer's warranty on the coil heat exchanger, provided that the installation, operation, and operating modes are followed. The actual service life under proper operation exceeds 15–20 years.
Each boiler is accompanied by a complete set of technical documentation: passport, installation and operation manual, non-destructive testing reports, hydraulic testing reports, compliance certificates.
Serial model
parameters
For non-standard requirements, custom builds to the customer's drawings are available.
*Lifetime warranty applies during the declared design service life of the boiler and is subject to BOILTE Warranty Terms.
Heavy, crude and waste fuels are subject to fuel-specific warranty terms.
Warranty terms →Specs
and documents
Pick a tab to view a section.
| Model | Power, kW | Pressure, bar | T max, °C | Mass, kg | Price, USD |
|---|---|---|---|---|---|
| Magma 150 | 150 | 10 | 250 | 900 | 15,213 |
| Magma 250 | 250 | 10 | 250 | 1120 | 18,536 |
| Magma 350 | 350 | 10 | 250 | 1540 | 25,639 |
| Magma 450 | 450 | 10 | 250 | 1670 | 27,603 |
| Magma 550 | 550 | 10 | 250 | 1890 | 31,027 |
| Magma 700 | 700 | 10 | 250 | 2280 | 37,729 |
| Magma 800 | 800 | 10 | 250 | 2500 | 41,053 |
| Magma 1000 | 1,000 | 10 | 250 | 3000 | 48,607 |
| Magma 1250 | 1,250 | 10 | 250 | 3800 | 61,575 |
| Magma 1500 | 1,500 | 10 | 250 | 4400 | 70,640 |
| Magma 2000 | 2,000 | 10 | 250 | 5200 | 82,727 |
| Magma 2500 | 2,500 | 10 | 250 | 6500 | 103,388 |
| Magma 3000 | 3,000 | 10 | 250 | 7100 | 112,454 |
| Magma 3500 | 3,500 | 10 | 250 | 8000 | 138,179 |
| Magma 4000 | 4,000 | 10 | 250 | 9120 | 169,680 |
| Magma 5000 | 5,000 | 10 | 250 | 12660 | 198,909 |
| Magma 6000 | 6,000 | 10 | 250 | 14650 | 228,975 |
| Magma 7000 | 7,000 | 10 | 250 | 16690 | 260,496 |
| Magma 8000 | 8,000 | 10 | 250 | 18300 | 287,182 |
| Magma 9000 | 9,000 | 10 | 250 | 19800 | 309,845 |
| Magma 10000 | 10,000 | 10 | 250 | 20300 | 317,958 |
Engineering documentation
Documents still in preparation can be requested: the enquiry reaches our engineers with the series and the required document already filled in.
Where it works MAGMA
- 01Woodworking
- 02Chemicals
Frequently asked
Why is a thermal oil boiler safer than a steam boiler at 300°C?
A steam boiler at 300°C generates pressure above 86 bar – this is a high-risk level that requires licenses, special personnel certification, expensive insurance, and regular inspections. The Magma thermal oil boiler operates at similar temperatures with a pressure of less than 10 bar.
What is the economic efficiency compared to steam?
Heat losses in the steam system amount to 15–20% due to the latent heat of vaporization and blowdowns. In the thermal oil system, it is only 3–5%. Energy efficiency is higher by 15–25%.
What warranty is provided?
Lifetime warranty on the coil heat exchanger provided that the installation, operation, and operating modes are followed.
How is the thermal oil protected from degradation?
Precise flow rate control using sensors and adjustable pumps prevents stagnation and overheating. Multi-point temperature measurement in real-time transmits data to the controller. Emergency cooling circuits automatically activate backup cooling in case of power failure or pump shutdown.
How to order a calculation and find out the price?
Leave a request in the form below. Within 1–2 working days, an engineer will contact you to clarify parameters and prepare a commercial offer.
