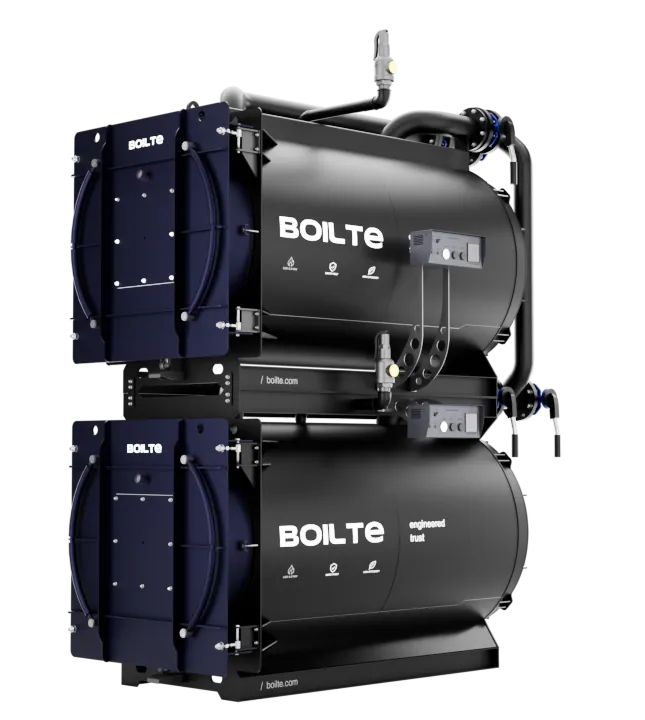

CORE DUODouble vertical water heating boiler with redundancy Boilte Core Duo
Boilte Core Duo – double water heating boiler with redundancy
Boilte Core Duo is a double vertical water heating boiler that represents a comprehensive engineering solution, where two highly efficient fire-tube boilers of the Core series are combined into a single vertical energy module. Total thermal power – from 140 to 2000 kW. Heat carrier temperature – 60–115°C, operating pressure – up to 6 bar. Efficiency – up to 94%. Estimated service life – over 25 years.
Core Duo is the choice for industrial, energy, and infrastructure facilities where uninterrupted heat supply and space savings are critically important. Two independent boilers in one casing provide mutual redundancy: if one module fails or requires scheduled maintenance, the second continues to operate, maintaining the heat supply to the facility.
The vertical binary configuration significantly increases the specific power per unit of occupied area, which is critically important when designing cramped or expensive spaces. Space savings compared to two separate horizontal boilers reach 40–50%.
From every side
Press and hold, then drag sideways to rotate. On a phone, swipe across the image.
Why choose CORE DUO
Fault tolerance and redundancy
Two independent boilers. The failure of one does not stop the heat supply.
Vertical configuration
Space savings of up to 50% compared to two horizontal boilers.
Lifetime warranty
On the heat exchanger and load-bearing elements of each module.
Cascade control
Dynamic load distribution, rotation of the leading module.
Fuel savings of 20–30%
Operation in the zone of maximum efficiency of each unit.
Scalability
Installation of one boiler with the possibility of adding a second later.
Construction
and materials
Vertical binary configuration:
Service & warranty
The Core Duo boilers are covered by a lifetime manufacturer's warranty on the heat exchanger and main load-bearing elements of each module, provided that installation, operation, and water-chemical regime rules are followed.
Each boiler is accompanied by a complete set of technical documentation: passport, installation and operation manual, non-destructive testing reports, hydraulic testing reports, compliance certificates.
Serial model
parameters
For non-standard requirements, custom builds to the customer's drawings are available.
*Lifetime warranty applies during the declared design service life of the boiler and is subject to BOILTE Warranty Terms.
Heavy, crude and waste fuels are subject to fuel-specific warranty terms.
Warranty terms →Specs
and documents
Pick a tab to view a section.
| Model | Power, kW | Pressure, bar | T max, °C | Mass, kg | Price, USD |
|---|---|---|---|---|---|
| Core Duo 100 | 100 | 6 | 115 | 580 | 3,509 |
| Core Duo 140 | 140 | 6 | 115 | 622 | 3,695 |
| Core Duo 200 | 200 | 6 | 115 | 634 | 3,749 |
| Core Duo 300 | 300 | 6 | 115 | 688 | 3,988 |
| Core Duo 400 | 400 | 6 | 115 | 744 | 4,236 |
| Core Duo 500 | 500 | 6 | 115 | 864 | 4,865 |
| Core Duo 600 | 600 | 6 | 115 | 1204 | 6,695 |
| Core Duo 700 | 700 | 6 | 115 | 1272 | 6,996 |
| Core Duo 800 | 800 | 6 | 115 | 1334 | 7,271 |
| Core Duo 1000 | 1,000 | 6 | 115 | 1596 | 8,854 |
| Core Duo 1200 | 1,200 | 6 | 115 | 1830 | 9,042 |
| Core Duo 1400 | 1,400 | 6 | 115 | 1994 | 9,768 |
| Core Duo 1600 | 1,600 | 6 | 115 | 2630 | 13,078 |
| Core Duo 1800 | 1,800 | 6 | 115 | 2740 | 13,565 |
| Core Duo 2000 | 2,000 | 6 | 115 | 2964 | 14,557 |
Engineering documentation
Documents still in preparation can be requested: the enquiry reaches our engineers with the series and the required document already filled in.
Where it works CORE DUO
- 01Hospitals
- 02Data centers
- 03Databases
Frequently asked
What is the main advantage of Core Duo over two separate boilers?
Core Duo is a factory integration of two boilers into a single vertical module with a common piping system. This saves up to 50% of space compared to two horizontal boilers, reduces installation costs, and provides a turnkey solution.
How does redundancy work?
Two boilers operate independently. If one module fails or is under scheduled maintenance, the second continues to operate, maintaining the heating supply to the facility.
What fuel savings are achieved through cascade control?
The cascade control system dynamically distributes the load between the modules, keeping each boiler operating in the zone of maximum efficiency. Fuel savings reach 20–30% compared to operating a single large-capacity boiler at partial loads.
What warranty is provided?
Lifetime warranty on the heat exchanger and main load-bearing elements of each module when installation, operation, and water-chemical regime rules are followed.
How to order a calculation and find out the price?
Leave a request in the form below. Within 1 working day, an engineer will contact you, clarify the parameters, and prepare a commercial offer.
