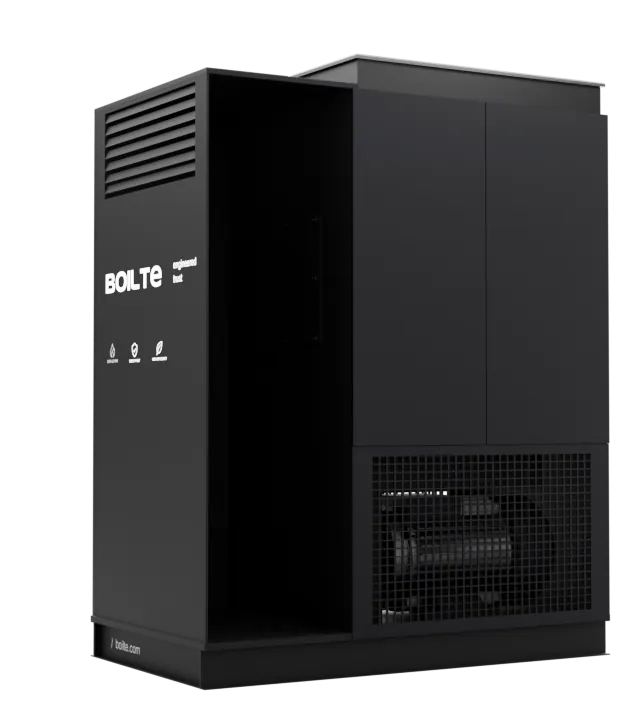

Boilte Lumo – diesel and gas air heat generator for outdoor installation
Boilte Lumo is an air heat generator running on diesel fuel or natural gas, designed for outdoor (all-weather) installation. Lumo is intended for fast, efficient and self-contained air heating in harsh climatic conditions: at drilling rigs, construction sites, warehouse complexes, production workshops, agricultural facilities and any other large-volume spaces that have no permanent heating.
From every side
Press and hold, then drag sideways to rotate. On a phone, swipe across the image.
Why choose LUMO
Operation down to -60°C
Frost-resistant materials, silicone insulation and special start-up algorithms.
Direct heating – up to 100% thermal efficiency
All of the fuel energy is transferred into the heated air.
All-weather enclosure
Anti-corrosion coating, resistance to moisture and temperature swings.
Lifetime warranty
On the combustion chamber (heat exchanger).
Dual fuel
Diesel where there is no gas main, or natural gas where a connection is available.
Monoblock design
All components in a single enclosure – fast installation.
Construction
and materials
All-weather enclosure:
Service & warranty
Lumo heat generators come with the manufacturer's lifetime warranty on the heat exchanger (combustion chamber), provided the installation and operating rules are observed.
Every unit is supplied with a complete package of technical documentation: data sheet, installation and operating manual, test reports and certificates of conformity.
Serial model
parameters
For non-standard requirements, custom builds to the customer's drawings are available.
The price list goes to 1000 kW. Output up to 1500 kW follows the specification and is supplied to order: contact the manager.
*Lifetime warranty applies during the declared design service life of the boiler and is subject to BOILTE Warranty Terms.
Warranty terms →Specs
and documents
Pick a tab to view a section.
| Model | Power, kW | Material | Mass, kg |
|---|---|---|---|
| Lumo 50 | 50 | 09G2S | 900 |
| Lumo 75 | 75 | 09G2S | 930 |
| Lumo 100 | 100 | 09G2S | 950 |
| Lumo 150 | 150 | 09G2S | 980 |
| Lumo 200 | 200 | 09G2S | 1090 |
| Lumo 250 | 250 | 09G2S | 1200 |
| Lumo 300 | 300 | 09G2S | 1300 |
| Lumo 350 | 350 | 09G2S | 1300 |
| Lumo 400 | 400 | 09G2S | 1400 |
| Lumo 500 | 500 | 09G2S | 1580 |
| Lumo 600 | 600 | 09G2S | 1700 |
| Lumo 800 | 800 | 09G2S | 1700 |
| Lumo 1000 | 1,000 | 09G2S | 1700 |
| Lumo 50 | 50 | AISI 304 | 900 |
| Lumo 75 | 75 | AISI 304 | 930 |
| Lumo 100 | 100 | AISI 304 | 950 |
| Lumo 150 | 150 | AISI 304 | 980 |
| Lumo 200 | 200 | AISI 304 | 1090 |
| Lumo 250 | 250 | AISI 304 | 1200 |
| Lumo 300 | 300 | AISI 304 | 1300 |
| Lumo 350 | 350 | AISI 304 | 1350 |
| Lumo 400 | 400 | AISI 304 | 1400 |
| Lumo 500 | 500 | AISI 304 | 1580 |
| Lumo 600 | 600 | AISI 304 | 1700 |
| Lumo 800 | 800 | AISI 304 | 1700 |
| Lumo 1000 | 1,000 | AISI 304 | 1700 |
The price list goes to 1000 kW. Output up to 1500 kW follows the specification and is supplied to order: contact the manager.
Engineering documentation
Documents still in preparation can be requested: the enquiry reaches our engineers with the series and the required document already filled in.
Where it works LUMO
- 01Workshops
- 02Sports facilities
Frequently asked
What is the difference between Lumo and Zephyr?
Lumo is a direct-fired heat generator running on diesel fuel or natural gas. The combustion products mix with the heated air, which delivers maximum efficiency (up to 100% heat transfer efficiency). Zephyr is a recuperative gas air heater with stream separation (clean air). Lumo is intended for outdoor use or well-ventilated spaces, while Zephyr is for enclosed rooms.
Can Lumo be used indoors?
Yes, but only with good supply-and-exhaust ventilation, since the combustion products mix with the heated air. Lumo is purpose-built for outdoor installation or for well-ventilated industrial spaces. For enclosed rooms without intensive ventilation we recommend recuperative air heaters (the Zephyr series).
What is the minimum temperature at which Lumo can operate?
Lumo remains operational at temperatures down to -60°C. It uses frost-resistant materials, silicone insulation and special start-up algorithms.
What warranty is provided?
A lifetime warranty on the combustion chamber (heat exchanger), provided the installation and operating rules are observed.
How do I request a calculation and find out the price?
Submit a request in the form below. Within 1 business day an engineer will contact you, clarify the parameters and prepare a commercial proposal.
