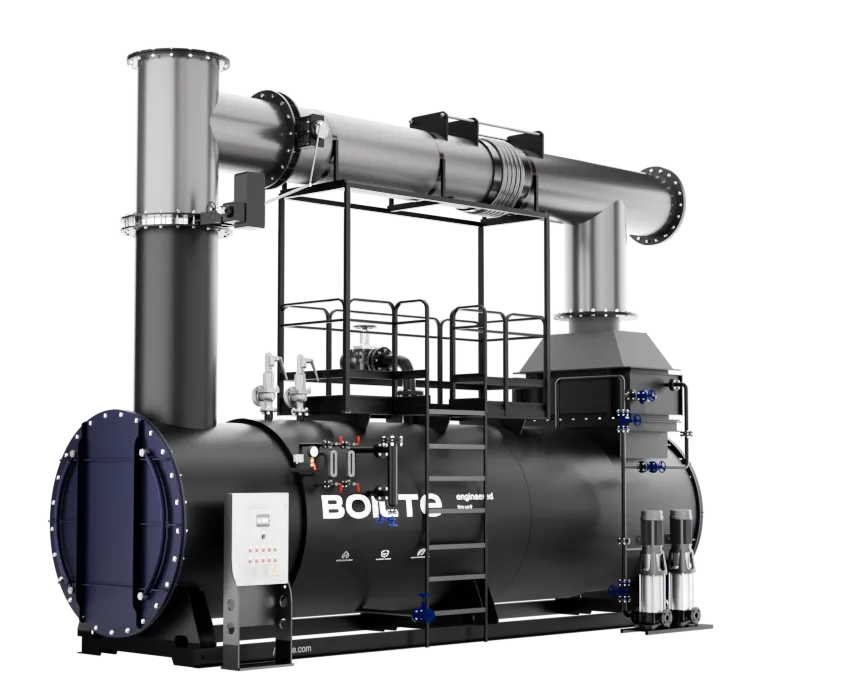

Boilte Echo – steam waste heat boiler (heat recovery from exhaust gases)
Boilte Echo is a steam waste heat boiler that converts waste heat from exhaust gases (from 250°C to 600°C) into high-quality steam for technological needs, heating, or electricity generation. Heat sources can include gas piston and gas turbine units, diesel generators, technological furnaces, reactors, calcining furnaces, and other equipment that emits hot gases.
From every side
Press and hold, then drag sideways to rotate. On a phone, swipe across the image.
Why choose ECHO
Fuel savings of 15–30%
Replacement of expensive steam from the main boiler with virtually free steam.
Increase in overall efficiency to 90-95%
Heat recovery from gas piston units and gas turbines.
Lifetime warranty
On the main heat exchanger.
Custom design
According to the chemical composition, temperature, and dustiness of your gases.
Protection against low-temperature corrosion
Calculation of the dew point, selection of materials (stainless steel in critical areas).
Modular design
Delivery in high factory readiness blocks.
Construction
and materials
Modular design of heat exchange surfaces:
Service & warranty
The Echo steam waste heat boilers come with a lifetime manufacturer's warranty on the main heat exchanger, provided installation and operation rules are followed. The estimated service life is over 15 years of uninterrupted operation.
Each boiler is accompanied by a complete set of technical documentation: passport, installation and operation manual, non-destructive testing protocols, hydraulic testing protocols, conformity documentation for the target market, a digital model of the boiler in STEP format for integration into the master plan, and an interactive map of welds linked to non-destructive testing protocols.
Serial model
parameters
For non-standard requirements, custom builds to the customer's drawings are available.
*Lifetime warranty applies during the declared design service life of the boiler and is subject to BOILTE Warranty Terms.
Warranty terms →Specs
and documents
Pick a tab to view a section.
| Model |
|---|
| Echo Recovery boilers |
Engineering documentation
Documents still in preparation can be requested: the enquiry reaches our engineers with the series and the required document already filled in.
Where it works ECHO
- 01Metallurgy
- 02Glass
Frequently asked
What is the payback period for the Echo steam waste heat boiler?
The average payback period is from 8 to 24 months depending on the operating mode of the gas source installation and energy carrier tariffs. Echo allows for the replacement of steam from the main boiler with virtually free steam.
Can Echo be used with dusty or aggressive gases?
Yes, Echo is designed individually for your gas stream. A gas impulse cleaning system (GICS) is provided for operation with dusty gases. In areas of potential corrosion with high sulfur (SO₂) or chlorine content, alloyed and stainless steels are used.
What warranty is provided?
Lifetime warranty on the main heat exchanger provided installation and operation rules are followed.
Is a separate permit required for the installation of the waste heat boiler?
The waste heat boiler is part of your existing installation. Our engineers prepare the documentation required for local approvals. The exact requirements depend on the parameters (pressure, temperature, volume) and local legislation.
How to order a calculation and find out the price?
Please submit an application in the form below, specifying the parameters of your gas stream (temperature, flow rate, chemical composition, dust content). An engineer will contact you within 1-2 working days to clarify details and prepare a commercial offer.
