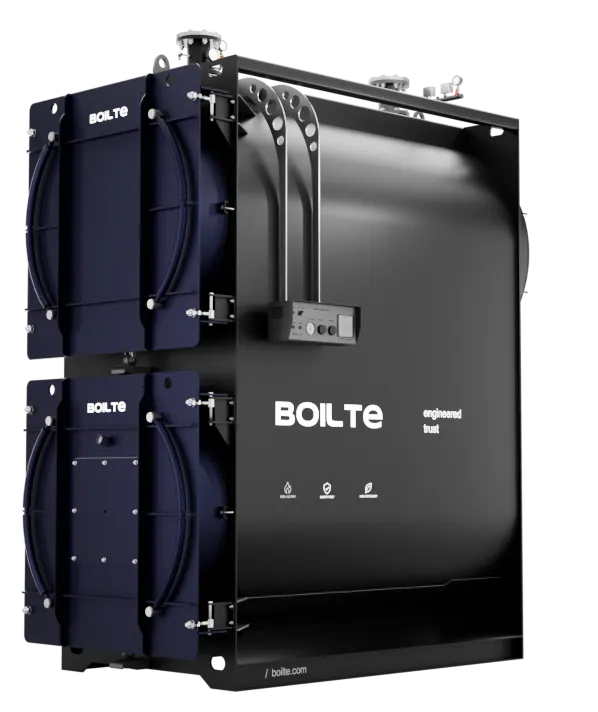

MIRA XHigh-capacity industrial water-tube steam boiler Boilte Mira X
Boilte Mira X – high-capacity industrial water-tube steam boiler
Boilte Mira X is an industrial water-tube drum steam boiler designed for long-term uninterrupted operation in industrial CHPs, large boiler houses, oil refineries and petrochemical plants, metallurgical complexes, and pulp and paper industries. The equipment is intended for generating saturated and superheated steam of high parameters, used for driving turbines, technological needs, heating, and hot water supply.
The Mira X boiler is designed to operate over the widest range of loads – from base load to peak loads. The steam production range is from 25,000 to 220,000 kg of steam per hour, operating pressure up to 45 bar, superheated steam temperature up to 450°C. These parameters allow Mira X to be used as the main source of steam in enterprises with continuous cycles, as well as a backup or peak source in CHPs.
A key feature of Mira X is the block delivery with high factory readiness. Depending on the capacity, the boiler is delivered in 2 to 8 blocks, fully welded and inspected at the factory. This significantly improves assembly quality (all critical connections are made in the shop, not on the installation site), reduces installation time and costs, and simplifies logistics – blocks can be transported by any means (road, rail, sea) without special permits.
From every side
Press and hold, then drag sideways to rotate. On a phone, swipe across the image.
Why choose MIRA X
High readiness block delivery
Delivery in the form of 2–8 blocks. Time and cost savings on installation up to 40%.
Gas-tight membrane panels
Eliminate air ingress, reduce excess oxygen, increase efficiency.
Lifetime warranty
On the heat exchanger and load-bearing elements. No time limit.
Tunnel and shaft layout
Design flexibility for any site.
Compliance with international standards
Conformity documentation for PED, EN, ASME and TÜV requirements.
Fuel basket flexibility
Operation on gas, heavy fuel oil, diesel, biofuels.
Construction
and materials
The design of the Mira X boiler is made according to a gas-tight scheme with furnace shielding using membrane panels manufactured on a fully automated welding line. This ensures:
Fuel flexibility
Mira X operates on natural gas, diesel fuel, heavy fuel oil, biofuels, as well as on mixed types of fuel. At the customer's request, the boiler can be equipped with:
Service & warranty
The Mira X boilers are covered by a lifetime warranty from the manufacturer on the heat exchanger and main load-bearing elements (drum, collectors, screen tubes) provided that the installation, operation, and water-chemical regime rules are followed. The calculated service life is over 20 years.
Each boiler comes with a complete set of technical documentation: passport, installation and operation manual, non-destructive testing protocols (UT, radiography), hydraulic testing protocols, and conformity documentation for PED, EN, ASME, or other applicable standards.
Serial model
parameters
For non-standard requirements, custom builds to the customer's drawings are available.
*Lifetime warranty applies during the declared design service life of the boiler and is subject to BOILTE Warranty Terms.
Heavy, crude and waste fuels are subject to fuel-specific warranty terms.
Warranty terms →Specs
and documents
Pick a tab to view a section.
| Model | Price, USD |
|---|---|
| Water-Tube Steam Boilers Mira X | On request |
Engineering documentation
Documents still in preparation can be requested: the enquiry reaches our engineers with the series and the required document already filled in.
Where it works MIRA X
- 01CHP
- 02Petrochemicals
- 03Metallurgy
- 04Pulp and paper industry
Frequently asked
What is the actual efficiency of the Mira X boiler on fuel oil?
On fuel oil, the efficiency is 2–3% lower than on gas – up to 87–92% depending on the type of nozzles and mode. A GIO system is installed upon request to maintain the cleanliness of heating surfaces.
What warranty is provided?
Lifetime warranty on the heat exchanger and main load-bearing elements (drum, collectors, screen tubes) provided that installation, operation, and water-chemical regime rules are followed.
Is it possible to supply the boiler disassembled for remote regions?
Yes, the Mira X is specifically designed for modular transportation. The modules have weight and dimensions that allow them to be transported by road, rail, and sea without special permits.
How to order a calculation and find out the price?
Please submit an application in the form below, attaching the questionnaire. Within 1–2 working days, an engineer will contact you to clarify parameters and prepare a commercial offer.
Is the boiler available with international conformity documentation?
Yes, the boiler can be supplied with the conformity documentation required for the target market, including PED, EN, ASME and TÜV requirements where applicable.
