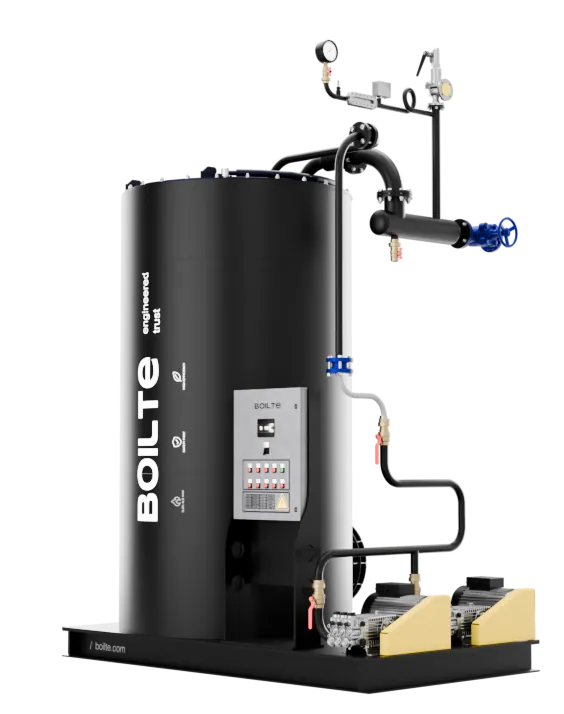

PULSEVertical coil steam generator Boilte Pulse
Vertical coil steam generator Boilte Pulse
Boilte Pulse is a vertical coil steam generator, a specialized solution for the food, pharmaceutical, and chemical industries, where steam directly contacts the product. Pulse ensures the production of perfectly clean saturated steam without impurities, scale, and carryover of boiler water, which is critically important for sterilization, pasteurization, and other processes where steam purity determines the quality of the final product.
From every side
Press and hold, then drag sideways to rotate. On a phone, swipe across the image.
Why choose PULSE
Perfectly clean steam
Single pass of water – no stagnation and secondary contamination.
Quick ramp-up to operating mode
3–5 minutes to working steam – fuel savings.
Minimal water volume
8–10 times less than that of fire-tube counterparts – increased safety.
Lifetime warranty
On the coil heat exchanger. No time limit.
High efficiency across the entire range
92–95% even at 20% load.
Compact dimensions
Vertical layout saves up to 40% of space.
Construction
and materials
Vertical coil design:
Service & warranty
The Pulse steam generators come with a lifetime manufacturer's warranty on the coil heat exchanger, provided that installation, operation, and water-chemical regime rules are followed. The calculated service life is over 20 years.
Each steam generator is accompanied by a complete set of technical documentation: passport, installation and operation manual, non-destructive testing protocols, hydraulic testing protocols, compliance certificates.
Serial model
parameters
For non-standard requirements, custom builds to the customer's drawings are available.
Price-list names show 180 °C. The specification limit is 194 °C.
*Lifetime warranty applies during the declared design service life of the boiler and is subject to BOILTE Warranty Terms.
Heavy, crude and waste fuels are subject to fuel-specific warranty terms.
Warranty terms →Specs
and documents
Pick a tab to view a section.
| Model | Power, kg/h | Pressure, bar | T max, °C | Mass, kg |
|---|---|---|---|---|
| Pulse 120 | 120 | 12 | 180 | 750 |
| Pulse 200 | 200 | 12 | 180 | 750 |
| Pulse 300 | 300 | 12 | 180 | 750 |
| Pulse 400 | 400 | 12 | 180 | 850 |
| Pulse 500 | 500 | 12 | 180 | 850 |
| Pulse 600 | 600 | 12 | 180 | 1250 |
| Pulse 800 | 800 | 12 | 180 | 1250 |
| Pulse 1000 | 1,000 | 12 | 180 | 1270 |
| Pulse 1200 | 1,200 | 12 | 180 | 1380 |
| Pulse 1500 | 1,500 | 12 | 180 | 1550 |
| Pulse 1800 | 1,800 | 12 | 180 | 2170 |
| Pulse 2000 | 2,000 | 12 | 180 | 2220 |
| Pulse 2500 | 2,500 | 12 | 180 | 2890 |
| Pulse 3000 | 3,000 | 12 | 180 | 2970 |
| Pulse 3500 | 3,500 | 12 | 180 | 3550 |
| Pulse 4000 | 4,000 | 12 | 180 | 4090 |
| Pulse 4500 | 4,500 | 12 | 180 | 5020 |
| Pulse 5000 | 5,000 | 12 | 180 | 6680 |
| Pulse 6000 | 6,000 | 12 | 180 | 7120 |
| Pulse 7000 | 7,000 | 12 | 180 | 7890 |
| Pulse 8000 | 8,000 | 12 | 180 | 9350 |
Price-list names show 180 °C. The specification limit is 194 °C.
Engineering documentation
Documents still in preparation can be requested: the enquiry reaches our engineers with the series and the required document already filled in.
Where it works PULSE
- 01Superheated steam
- 02Technologies
Frequently asked
How does Pulse differ from traditional steam boilers?
Pulse is a coil steam generator with a single pass of water. The volume of pressurized water is 8–10 times less than that of fire-tube counterparts. This provides a quick ramp-up to operating mode (3–5 minutes) and perfectly clean steam without carryover of boiler water.
What is the actual efficiency of the steam generator on diesel fuel?
On diesel fuel, the efficiency of Pulse decreases by 1–2% compared to gas and is 88–90% depending on the burner settings and operating mode. At partial loads, the efficiency remains high (92–95% even at 20% load).
What warranty is provided?
Lifetime warranty on the coil heat exchanger provided that installation, operation, and water-chemical regime rules are followed.
Is the steam generator suitable for the food industry?
Yes, Pulse is specifically designed for industries where steam comes into direct contact with the product. The single pass of water eliminates secondary contamination, and the high degree of steam dryness ensures quality sterilization and pasteurization.
How to order a calculation and find out the price?
Leave a request in the form below. Within 1 working day, an engineer will contact you, clarify the parameters, and prepare a commercial offer.
