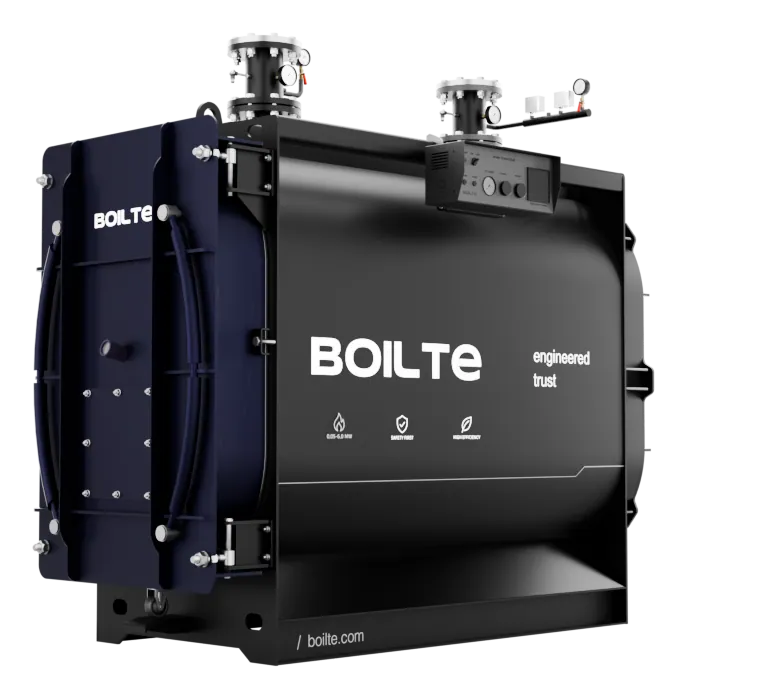

SLIMCompact two-pass water heating boiler Boilte Slim
Boilte Slim – compact water heating boiler for confined conditions
Boilte Slim is a two-pass compact water heating boiler designed for efficient use of space without compromising performance. Slim is the answer to the typical modernization problem: when the existing boiler room has limited dimensions, and replacing equipment requires fitting new power into old openings and spaces.
From every side
Press and hold, then drag sideways to rotate. On a phone, swipe across the image.
Why choose SLIM
Compact design
Power up to 2500 kW in a narrow body – space savings of up to 40%.
High power density
Extensive heating surface and optimized aerodynamics.
Lifetime warranty
On the heat exchanger and load-bearing elements. No time limit.
Easy maintenance
Rotating front door and removable rear chamber for quick access.
Cascading
Multiple units can be placed in a row to increase power.
Savings on construction
Reducing the dimensions of the boiler room lowers capital costs.
Construction
and materials
Two-pass smoke tube design with an extensive heating surface:
- ›Body made of boiler steel P265GH (EN 10028) (increased strength, impact toughness, corrosion resistance)
- ›Each critical weld seam undergoes validation using radiographic and ultrasonic testing methods with the issuance of a report
- ›Hydraulic tests – at a pressure 1.5 times higher than the operating pressure
- ›Manufacturing tolerances and control are 30% stricter than industry standards.
Fuel flexibility
Slim operates on natural gas, liquefied gas, diesel fuel, and fuel oil. The design allows for instant reconfiguration from one type of fuel to another. The ability to switch between gas and liquid fuel depending on price conditions provides financial protection for your business.
Service & warranty
The Slim boilers come with a lifetime manufacturer's warranty on the heat exchanger and main load-bearing elements, provided that installation, operation, and water-chemical regime rules are followed.
Each boiler is accompanied by a complete set of technical documentation: passport, installation and operation manual, non-destructive testing reports, hydraulic testing reports, compliance certificates.
Serial model
parameters
For non-standard requirements, custom builds to the customer's drawings are available.
*Lifetime warranty applies during the declared design service life of the boiler and is subject to BOILTE Warranty Terms.
Heavy, crude and waste fuels are subject to fuel-specific warranty terms.
Warranty terms →Specs
and documents
Pick a tab to view a section.
| Model | Power, kW | Pressure, bar | T max, °C | Mass, kg | Price, USD |
|---|---|---|---|---|---|
| Slim 400 | 400 | 5 | 115 | 883 | 4,240 |
| Slim 500 | 500 | 5 | 115 | 1057 | 5,197 |
| Slim 600 | 600 | 5 | 115 | 1206 | 5,312 |
| Slim 700 | 700 | 5 | 115 | 1308 | 5,751 |
| Slim 800 | 800 | 5 | 115 | 1856 | 7,753 |
| Slim 1000 | 1,000 | 5 | 115 | 2120 | 8,646 |
| Slim 1300 | 1,300 | 5 | 115 | 2517 | 11,072 |
| Slim 1500 | 1,500 | 5 | 115 | 3029 | 11,700 |
| Slim 1700 | 1,700 | 5 | 115 | 3237 | 12,466 |
| Slim 2000 | 2,000 | 5 | 115 | 3791 | 15,804 |
| Slim 2200 | 2,200 | 5 | 115 | 3910 | 16,252 |
| Slim 2500 | 2,500 | 5 | 115 | 4352 | 19,705 |
Engineering documentation
Documents still in preparation can be requested: the enquiry reaches our engineers with the series and the required document already filled in.
Where it works SLIM
- 01Boiler house reconstruction
- 02Limited spaces
Frequently asked
How much more compact is Slim compared to standard boilers?
Slim can deliver power up to 2500 kW in an exceptionally narrow body. The space savings compared to standard configuration boilers reach 40% at the same thermal power.
Is it possible to install several Slim boilers in a cascade?
Yes, multiple units can be arranged in a row to create a high-capacity cascade system. The compact width of the boiler allows for more thermal power to fit in the same boiler room area.
What is the actual efficiency of the boiler on diesel fuel?
On diesel fuel, the efficiency of the Slim boiler decreases by 1–2% compared to gas and is 91–93% depending on the burner settings and operating mode.
What warranty is provided?
Lifetime warranty on the heat exchanger and main load-bearing elements provided that installation, operation, and water-chemical regime rules are followed.
How to order a calculation and find out the price?
Leave a request in the form below. Within 1 working day, an engineer will contact you, clarify the parameters, and prepare a commercial offer.
